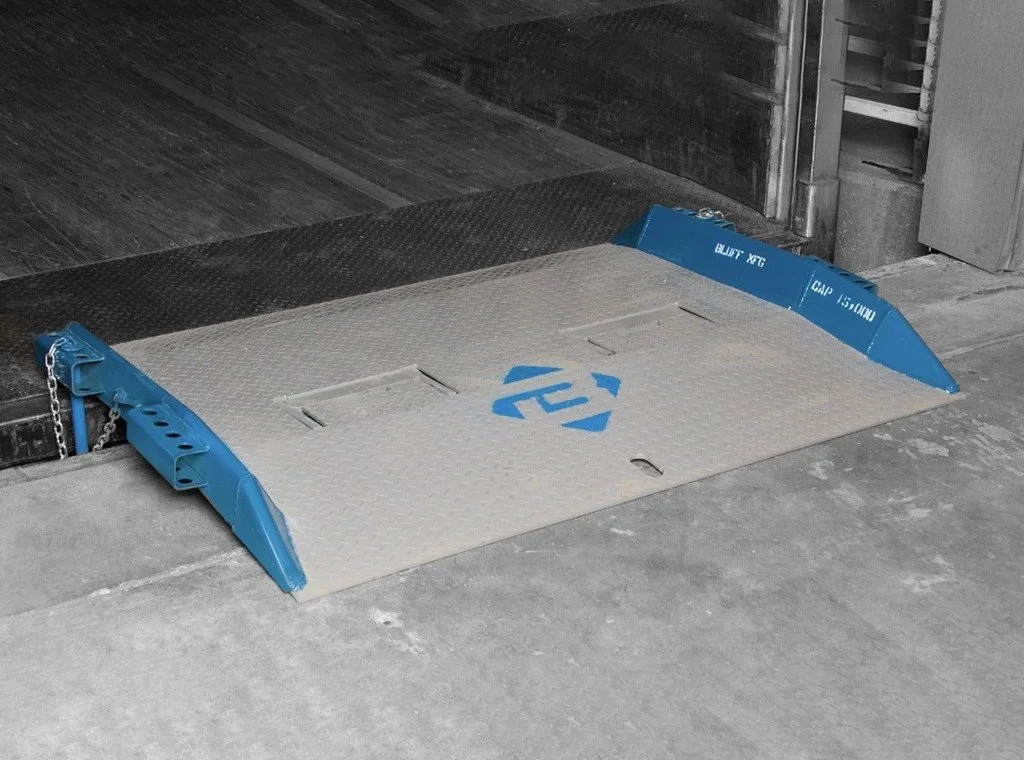

All steel construction and our heavy-duty design makes this board “the choice” for the busy dock where high traffic cycles, high capacities and multiple shifts demand the maximum from equipment. This heavy-duty steel dock board is held in position using two 1″ stress-proof steel pins. When properly placed in the side pin pocket locations, these pins hold the dock board firmly in place, guarding against slippage. Simply select the proper pin hole location to utilize once the board is in place between the dock and trailer. Can be used for below dock loading situations depending on the height differential.
All welded construction makes for a “maximum effort” product and provide a safe ramp for powered vehicle application.
Manufactured and Tested in Compliance with ANSI Standard MH30.2.

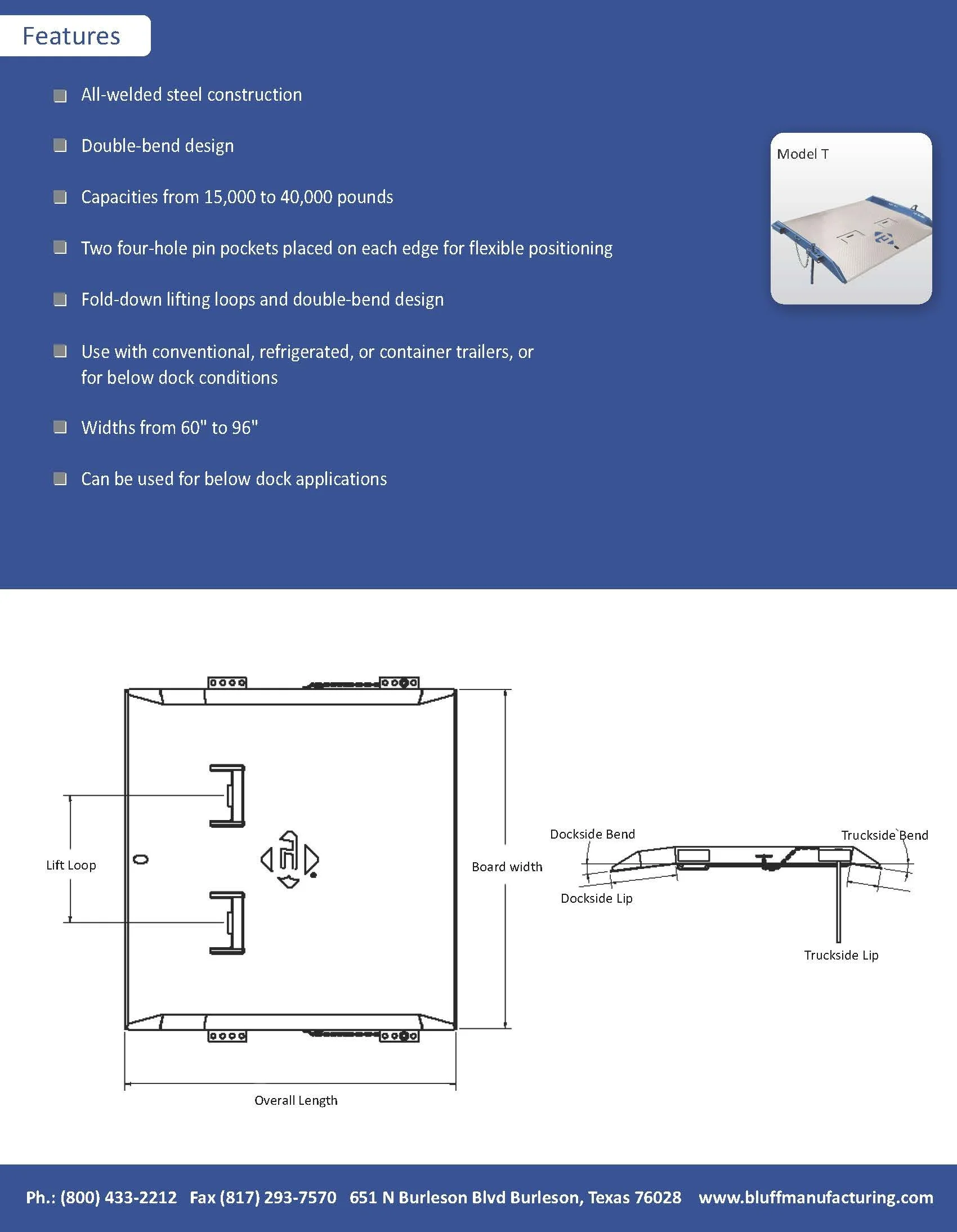

All-Welded Steel Construction

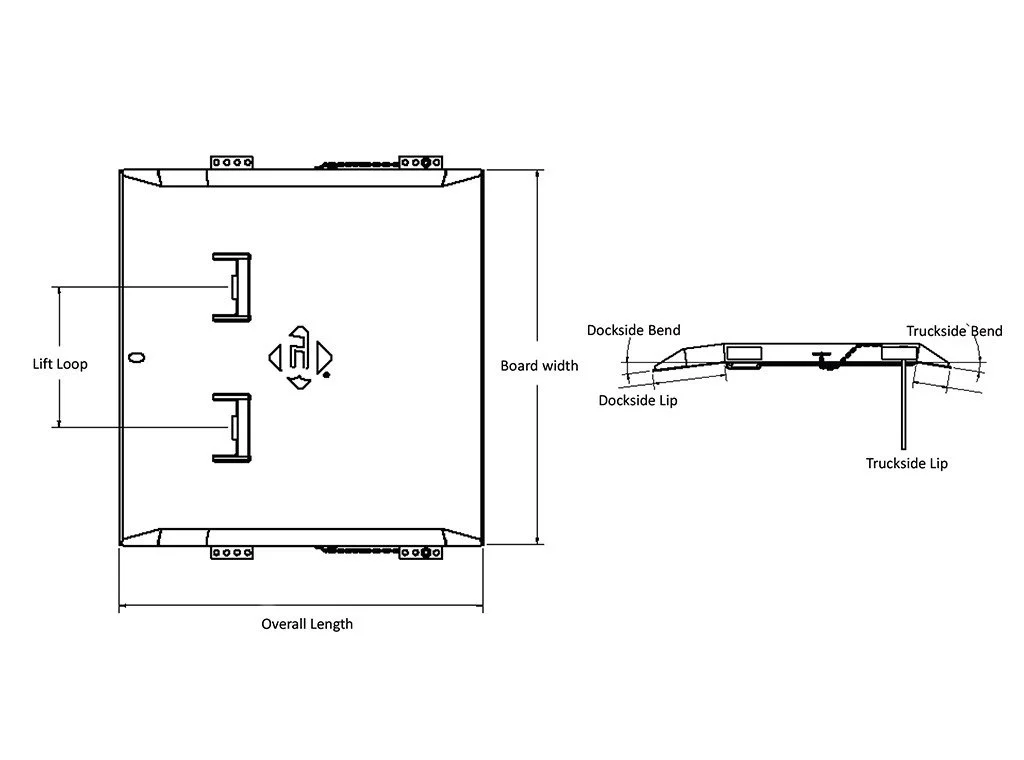

Double-Bend Design
60”W X 60”L
15,000lbs Capacity
Unit Weight 523lbs
Two Four-Hole Pin Pockets Placed on each Edge for Flexible Positioning
Above and Below Dock Loading
Fold-Down Lifting Loops & Double-Bend Design
Use with Conventional, Refrigerated, or Container Trailers, or for Below Dock Conditions
Can be Used for Below Dock Applications
